Modular design (1-8 drives); 1 phase 200V & 3 phase 400 V supply; 200-7.5 kW

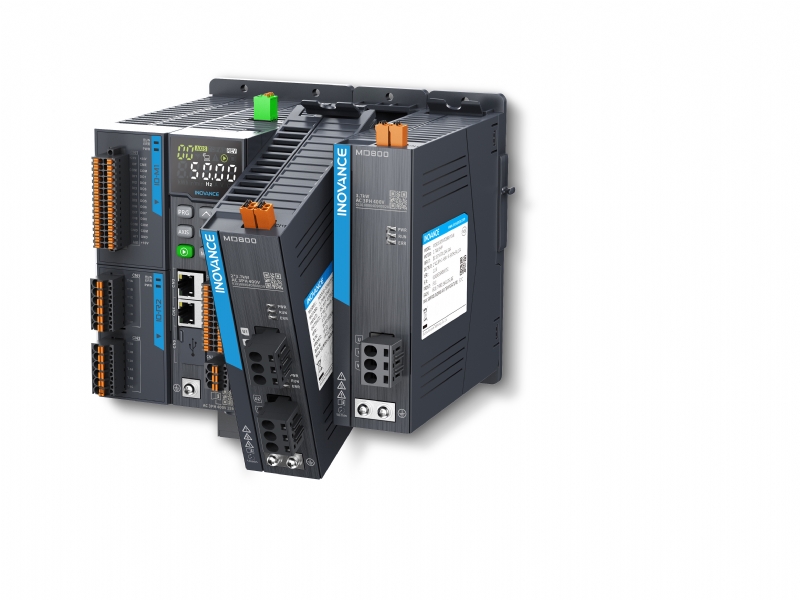

NEW – INNOVATIVE MD800 COMPACT AC MULTIDRIVE MD800 is answering the call of OEMs for reduced installation costs and smaller machine cabinets It has a modular design that allows up to 8 drives per rectifier, reducing overall drive footprint by up to 50% compared to traditional single drive modules And it’s the rising star of our product range

3 ph 380-480 Vac: 0.4 to 500 kW, 3 ph 200-240 Vac: 0.4 to 75 kW 1 ph 200-240 Vac: 0.4 to 2.2 kW

• MD520 high performance universal AC drive
• Unified AC asynchronous and PM synchronous motor control
• Wide operating voltage and product range:
• 3 ph 380-480 Vac: 0.4 to 500 kW
• 3 ph 200-240 Vac: 0.4 to 75 kW
• 1 ph 200-240 Vac: 0.4 to 2.2 kW
• STO SIL 3 PL e
• Built-in DC reactor (400 V: 18.5 kW and above; 200 V: 11 kW and above)
• Enhanced reliability: conformal coated PCBs compliant to 3S2 and 3C3 environments
• Complies to efficiency level IE2 as defined in IEC 61800-9-2
• Through-hole mounting options (0.4 to 160 kW)

Open & closed loop, three phase, 0.4-500 kW

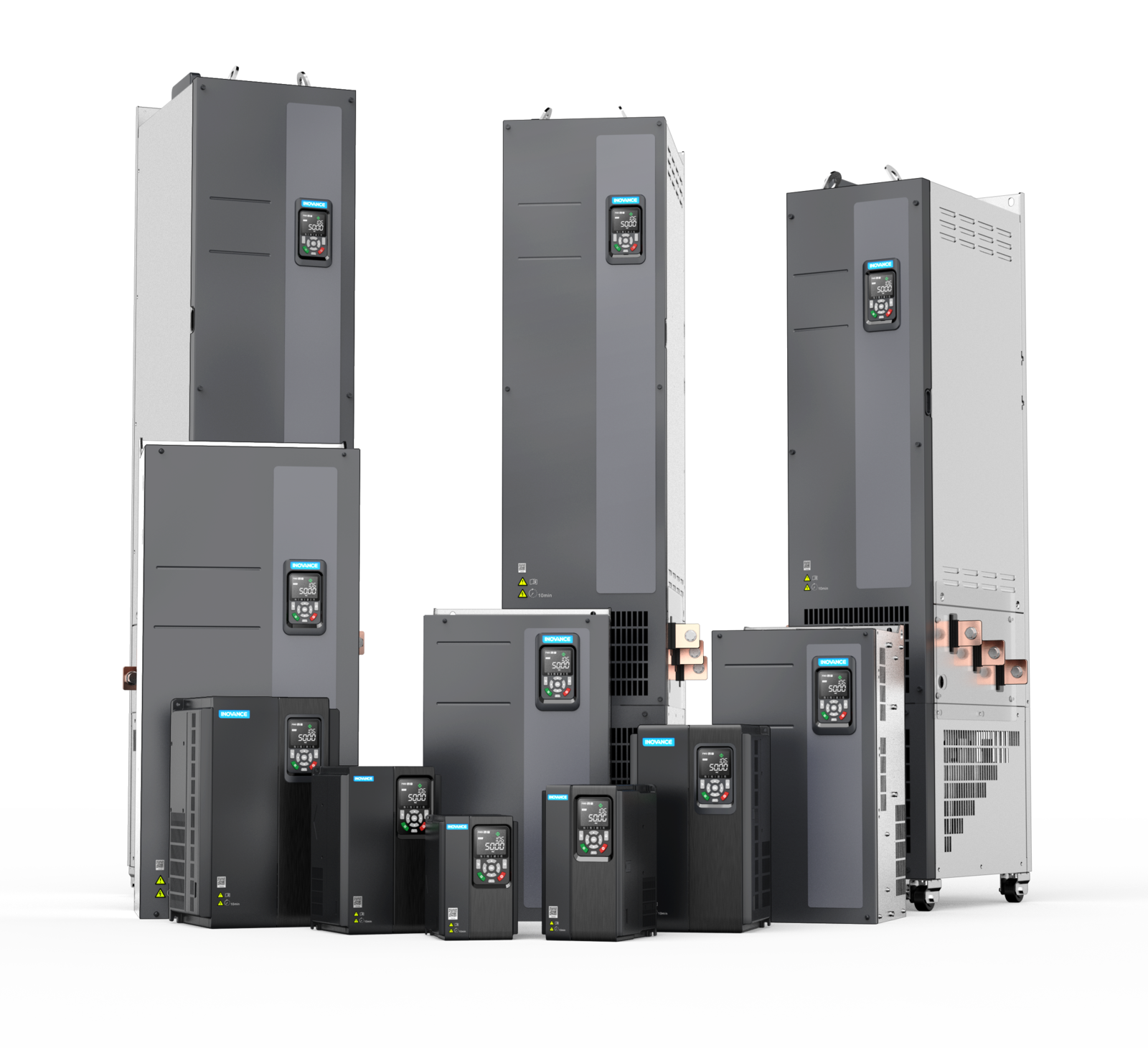

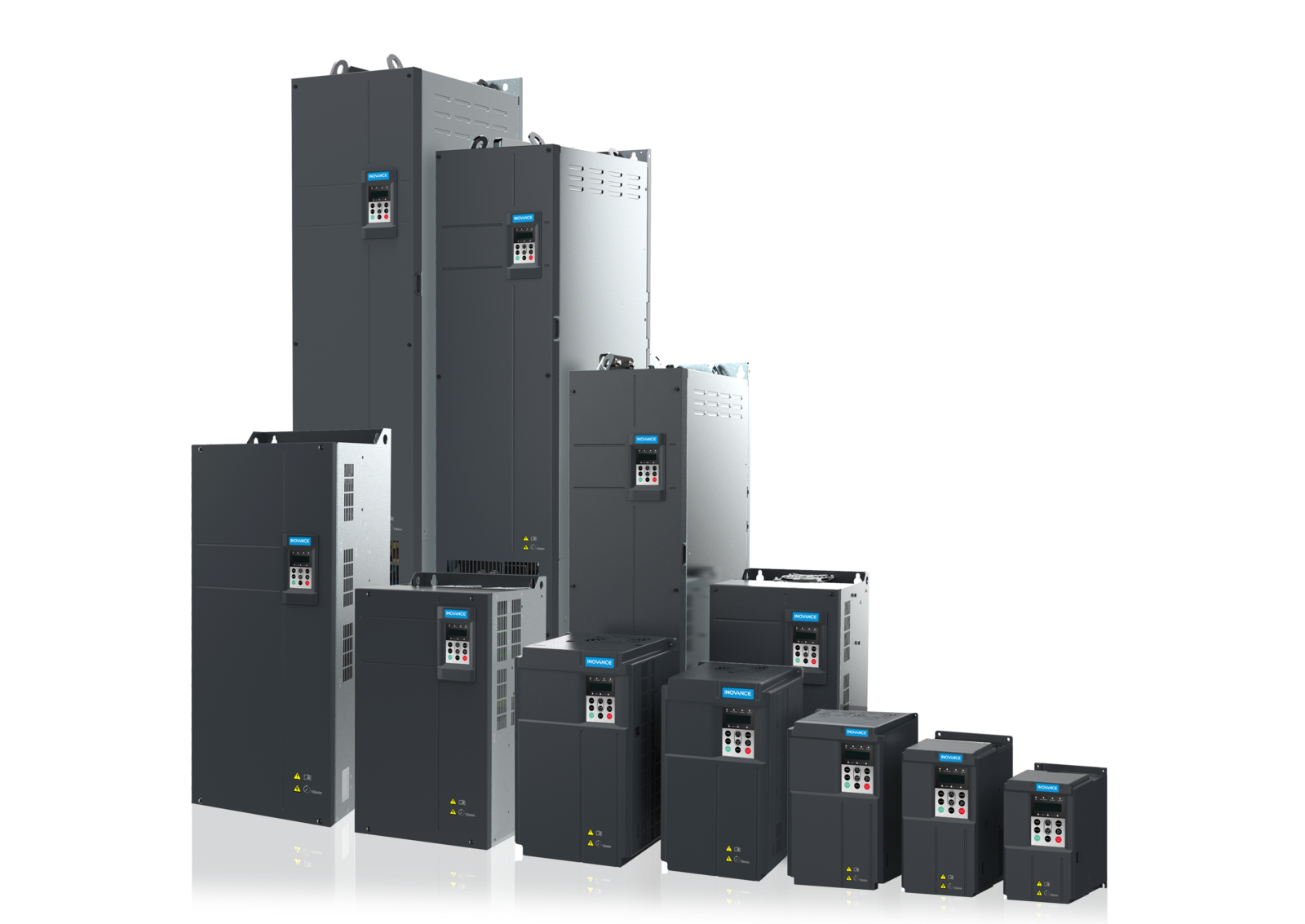

• MD500-PLUS high performance universal AC drive
• Wide operating voltage and product range:
• 3 ph 380-480 Vac: 0.4 to 500 kW
• 3 ph 200-240 Vac: 0.4 to 75 kW
• 1 ph 200-240 Vac: 0.4 to 2.2 kW
• Operation in high ambient temperatures - up to 50oC*1
• Built-in DC reactor (400 V: 18.5 kW and above; 200 V: 11 kW and above)
• Conformal coated PCBs compliant to 3S2 and 3C3 environments
• Enhanced reliability
• Complies with efficiency level IE2 as defined in IEC 61800-9-2
• PC-based software: simplified start-up & backup*2
• Through-hole mounting options (0.4 to 160 kW)

open loop, general purpose, compact, economic drive series Open loop, single phase, 220 VAC, 0.4-2.2 kW; three phase, 400 VAC, 0.4-3.7 kW

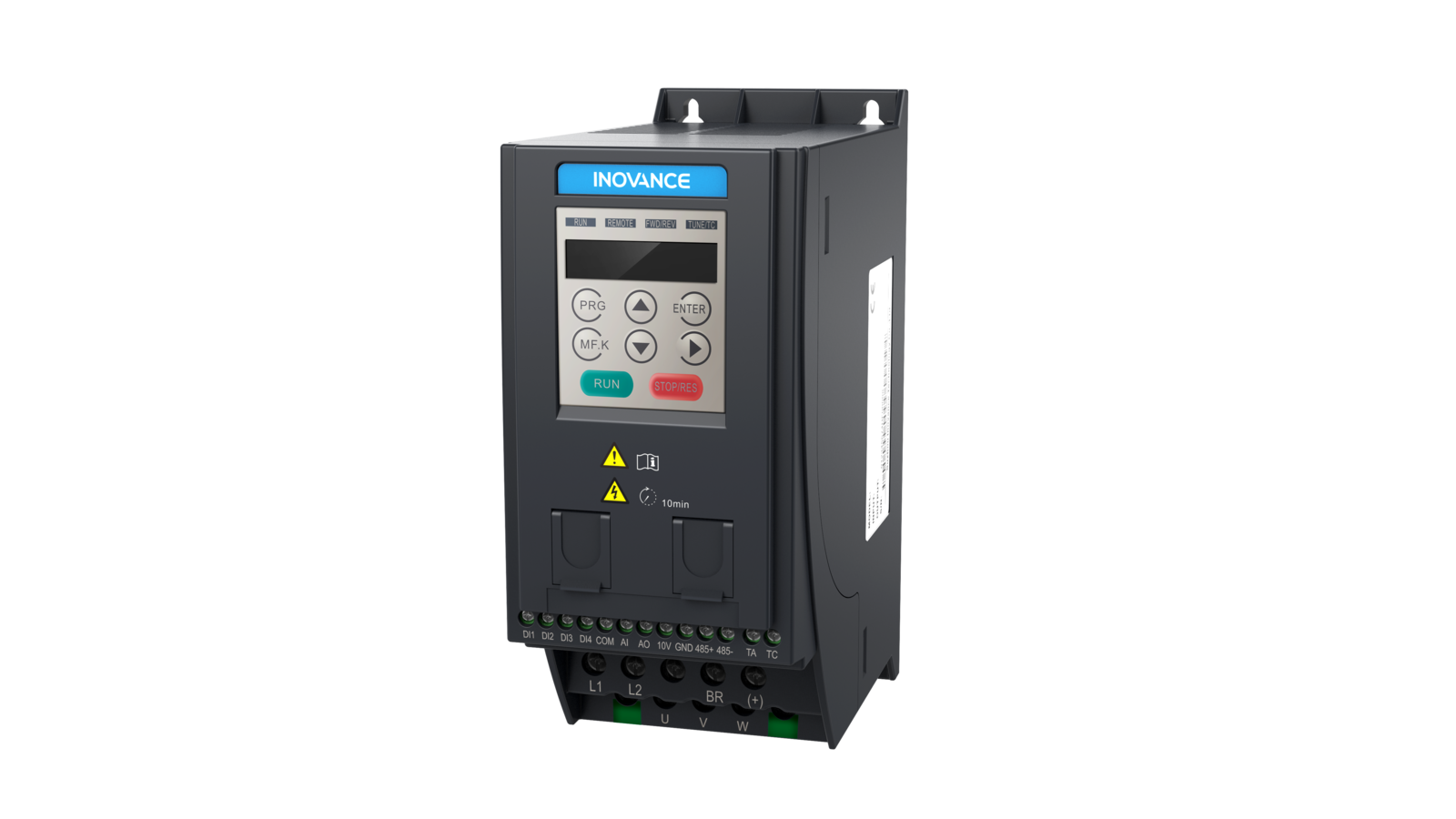

• MD200 - open loop, general purpose, compact, economic drive series
• Open loop, single phase, 220 VAC, 0.4-2.2 kW; three phase, 400 VAC, 0.4-3.7 kW
• Open loop V/F control & sensorless vector control
• Starting torque of 150% at 3 Hz
• Automatic torque boost
• Slip compensation
• Communications options:
• Modbus RTU (standard version)
• CANlink (variant)
• Simplified parameter for easy start-up
• 2-independent S-Ramps
• Flexible programmable I/O connection
• Variable DC-injection braking
• Comprehensive trip diagnostics
• Output frequency 500 Hz
• Built-in dynamic braking unit
• Complies with CE and UL

compact vector, economic AC drive series Open loop, three phase, 400 V, 0.4-18.5 kW

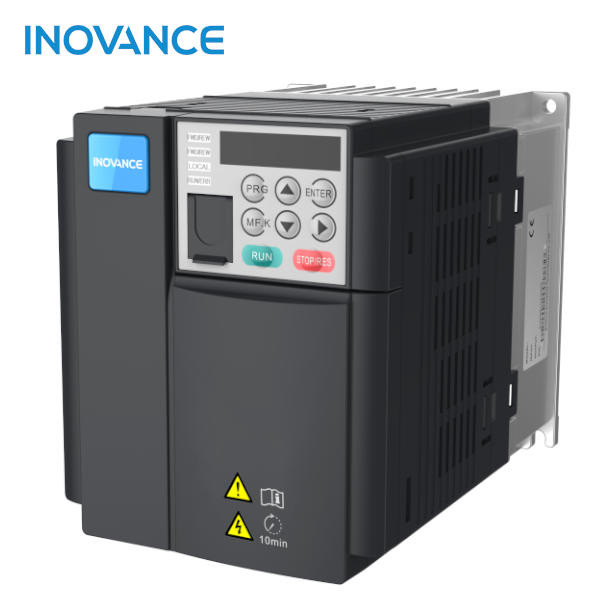

• MD310 compact vector, economic AC drive series
• Open loop, three phase, 400 VAC, 0.4-18.5 kW
• Open loop V/f & sensorless vector control
• Starting torque:
• 150% at 0.25 Hz for SVC
• Automatic torque boost
• Slip compensation
• Communications options:
• Modbus-RTU
• CANlink
• Simplified parameter for easy start-up
• 4-independent S-ramps
• Flexible programmable I/O connection
• Variable DC-injection braking
• Comprehensive trip diagnostics
• Output frequency 500 Hz
• Built-in dynamic braking unit
• Complies with CE

MultiDrive system Open & closed loop, three phase, 400 VAC, 1.5-160 kW (dual drive unit: 1.5-18.5 kW)

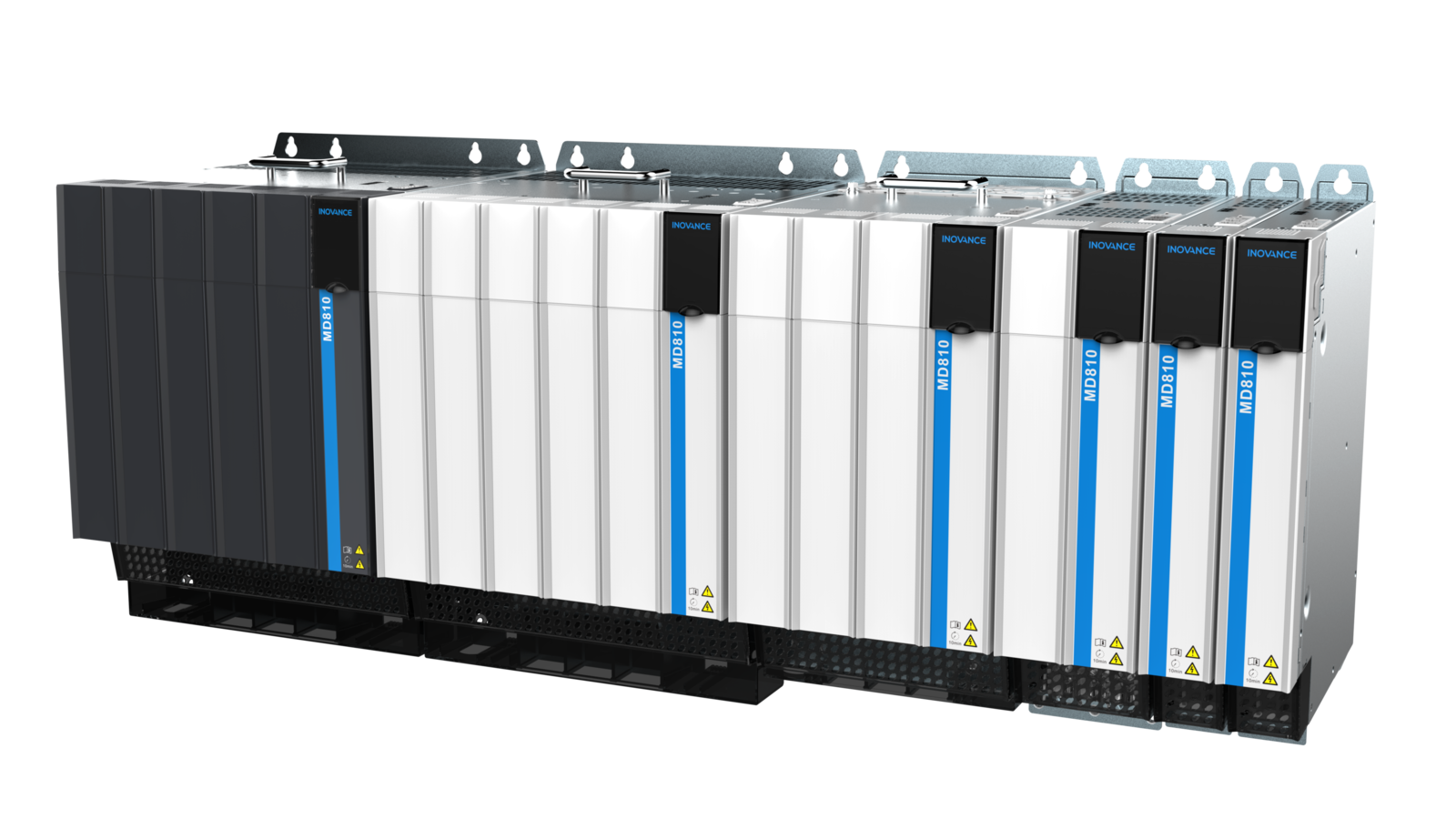

• MD810 MultiDrive system
• Open & closed loop, three phase, 400 VAC, 1.5-160 kW (dual drive unit: 1.5-18.5 kW)
• Multidrive system for induction and PMS motors – configurable V/f or sensorless
• vector control or closed-loop
• vector control for asynchronous motors & permanent magnet synchronous motors
• Common power supply unit from 22-355 kW
• Drive range from 1.5-160 kW (dual drive unit: 1.5-18.5 kW)
• STO SIL 3 acc. to EN/IEC 61800-5-2
• Static and dynamic auto-tuning
• Centre winder/unwinder function
• Wobble function
• Point to point position control function
• Second PID control loop for external process control (load cell or similar)
• Communications options:
• CANopen
• Modbus-RTU
• PROFIBUS-DP
• CANlink
• PROFINET
• Complies with CE and UL

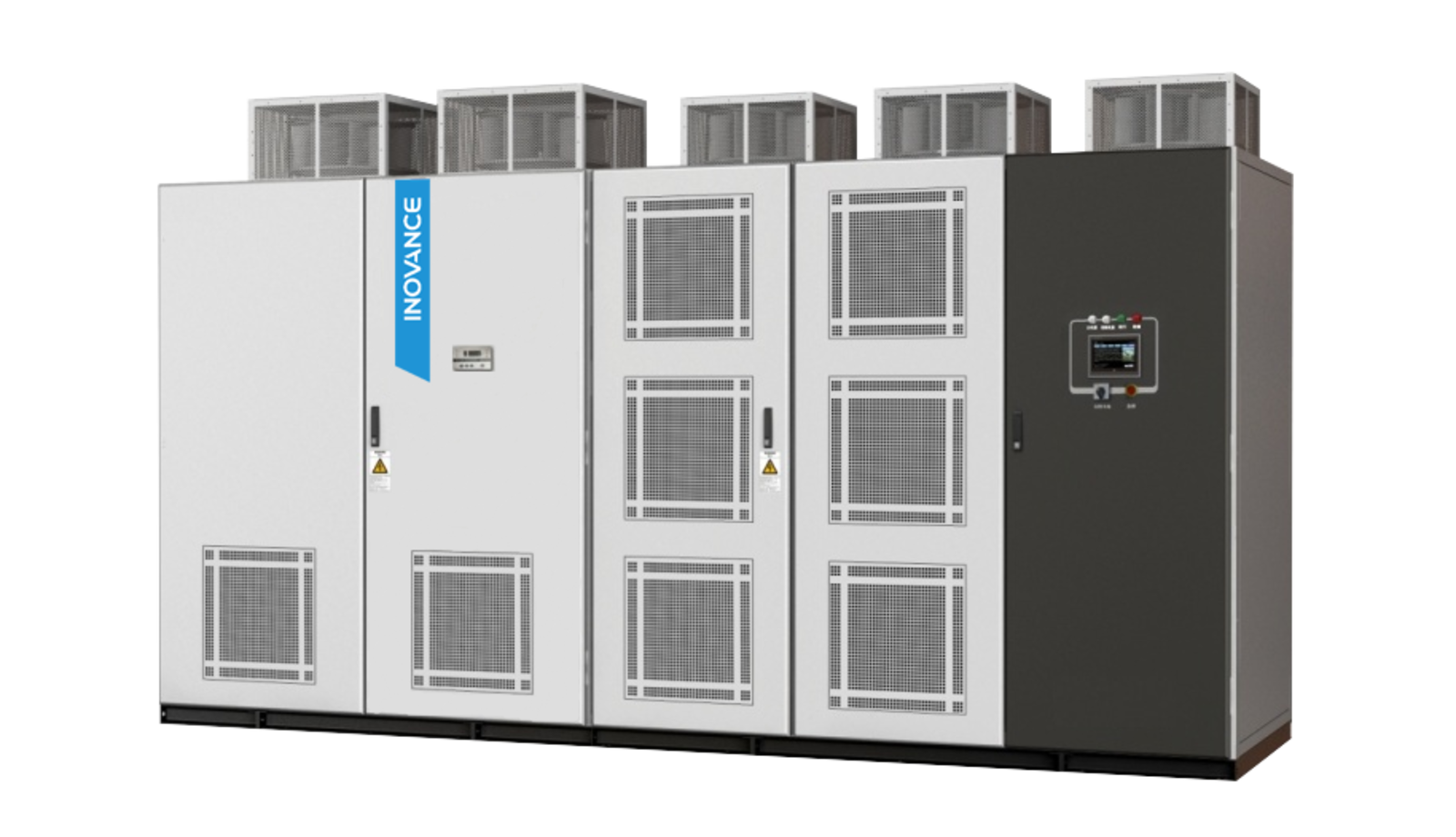

Second generation medium voltage drive for general loads. 3, 3.3, 6, 6.6, 10 and 11 kV; 280 – 5000 kVA

• High efficiency (>96% for the complete drive)
• High input power factor (>0.95), low input current harmonics (compliant to IEEE 519-1992)
• Extremely low dV/dt output voltage
• Short circuit protection on transformer secondary windings
• Modular construction - very compact design
• Fast catch spinning function (250 ms)
• Optional power cell bypass
• Optional bypass cabinet can be integrated in the drive
• Syn-transfer solution that achieves very soft switching during by-pass transfer.
• Touchscreen (Inovance HMI) for drive commissioning, monitoring and troubleshooting (“black box” function)
• Designed according to IEC standards
• MVD units are fully tested in the factory
• Typical applications: pumps, fans, compressors, mixers, mills, shore to ship power supply, conveyors, etc

High dynamic performance with a compact footprint: the SV660N servo solution for industrial automation applications

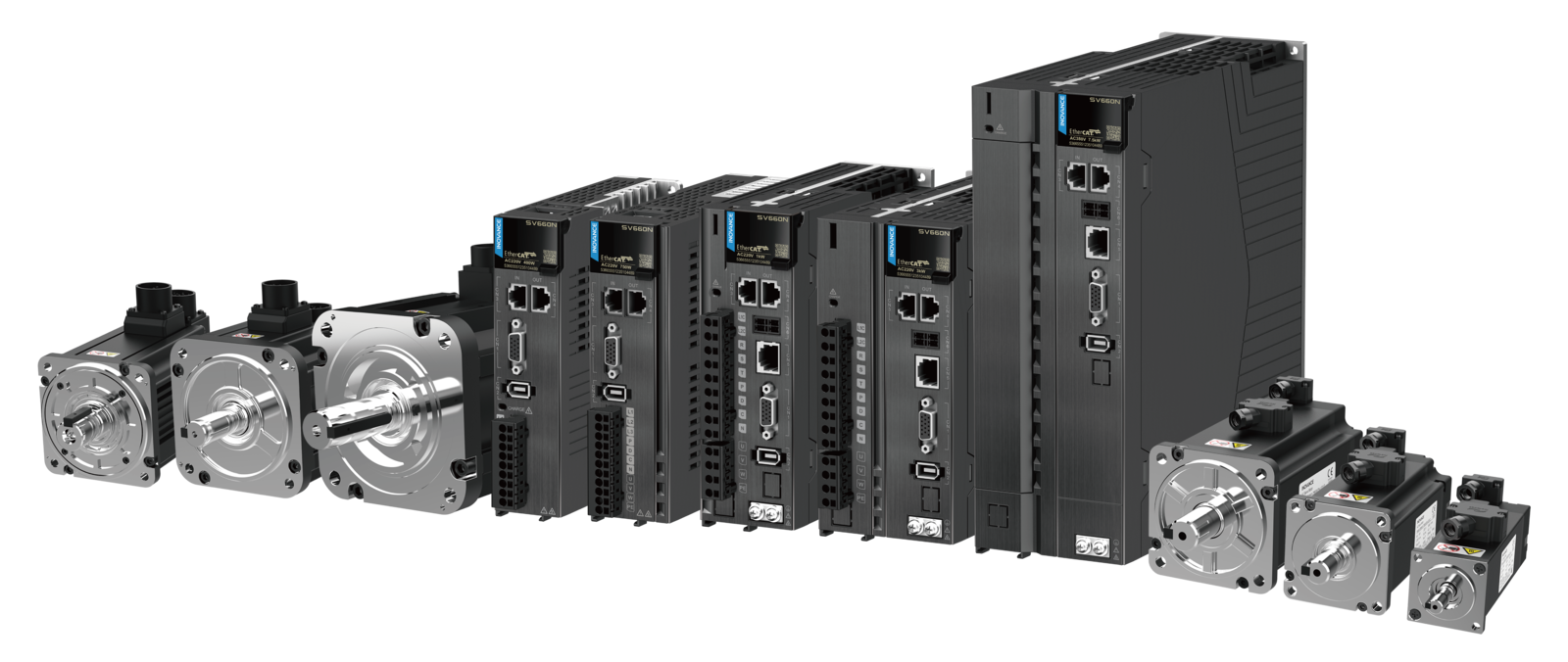

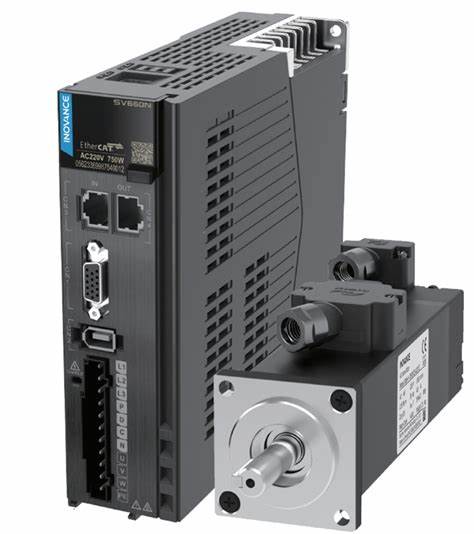

• SV6s60N servo drive
• High dynamic performance with a compact footprint: the SV660N servo solution for industrial automation applications
• User friendly installation
• Easy set-up and tuning
• Ultra-fast 4.5 kHz current loop
• Speed loop bandwidth up to 3 kHz
• Supply voltage:
• Single phase 220 V
• Three phase 220 V
• Three phase 380 V
• 0.1-7.5 kW
• Safe Torque Off - SIL3
• Complies with CE and UL

Single-Axis Pulse Servo Drive: performance and flexibility in a compact footprint

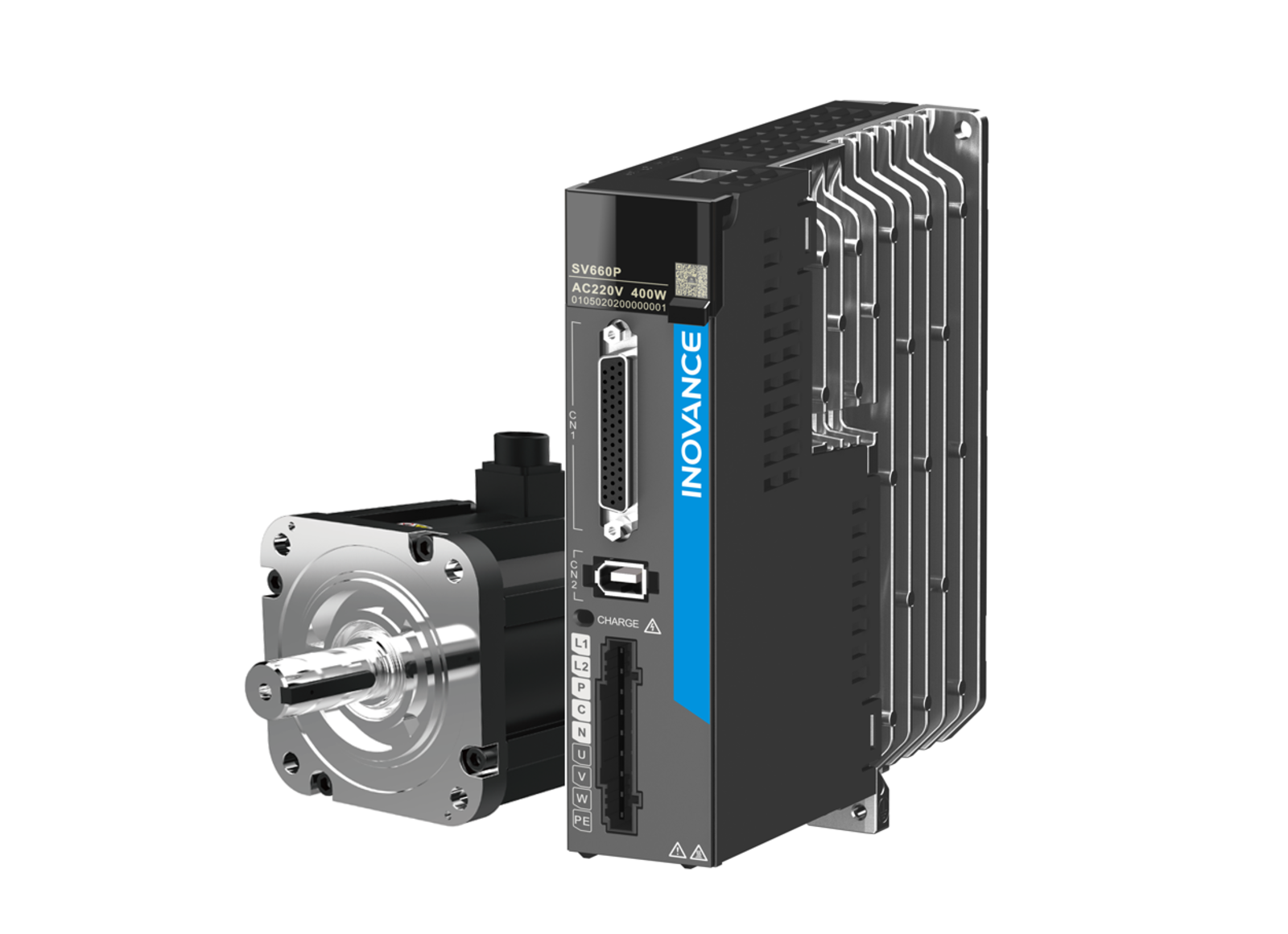

• SV660P - Single-Axis Pulse Servo Drive
• Performance and flexibility in a compact footprint.
• User friendly installation
• Easy set-up and tuning
• CANopen (C) and CANlink (A) variants also available
• Speed loop bandwidth up to 2 kHz
• Supply voltage:
• Single phase 220 V
• Three phase 220 V
• Three phase 380 V
• 0.1-7.5 kW
• Complies with CE and UL

High dynamic performance with a compact footprint: the SV660F servo solution for industrial automation applications

• SV660F – Single-Axis PROFINET Servo Drive
• High dynamic performance with a compact footprint:
• The SV660F servo solution for industrial automation applications.
• User friendly installation
• Easy set-up and tuning
• Ultra-fast 4.5 kHz current loop
• Safe Torque Off - SIL3
• PROFINET RT and IRT communication
• Supports PROFIdrive device profile

The highly dynamic MS1 servo motor range has a wide variety of power ratings, as well as flange and brake options

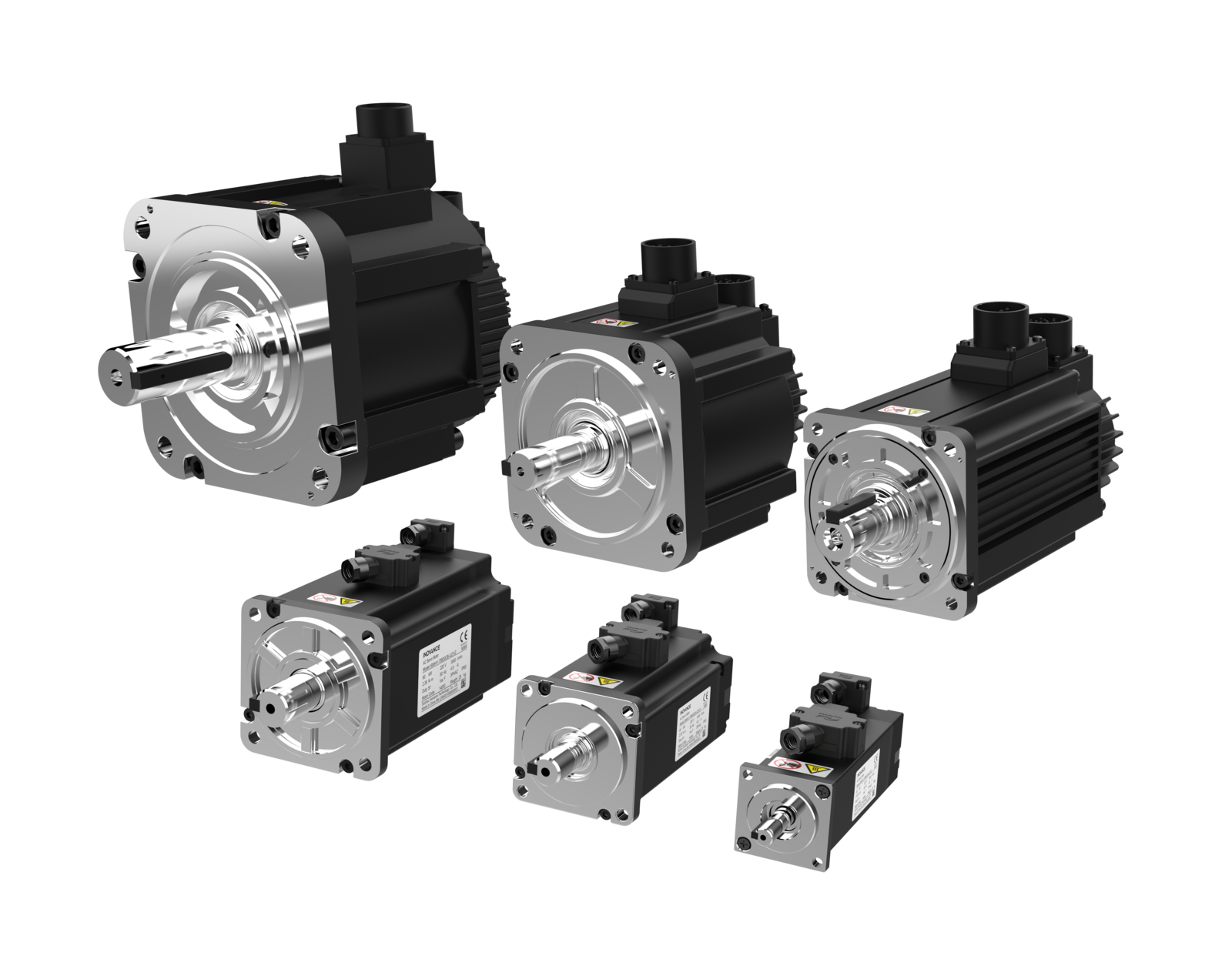

• MS1 series servo motors
• The highly dynamic MS1 servo motor range has a wide variety of power ratings, as well as flange and brake options. The motor family benefits from a small footprint that reduces overall machine size.
• MS1H1/H4 series
• From 0.16 to 3.2 Nm
• Easy motor and encoder connections
• 23 bit motor encoder feedback: +/-15 arcseconds
• Up to 350% maximum peak torque
• Torque fluctuation < 0.5%
• IP67 rating
• Complies with CE and UL
• MS1H2/H3 series
• From 3.2 to 47 Nm
• 23 bit motor encoder feedback: +/-15 arcseconds
• Up to 300% maximum peak torque
• Torque fluctuation < 1%
• IP67 rating
• Complies with CE and UL

Performance, enhanced functionality, and flexibility: the SV670P - Single-Axis Pulse Servo Drive

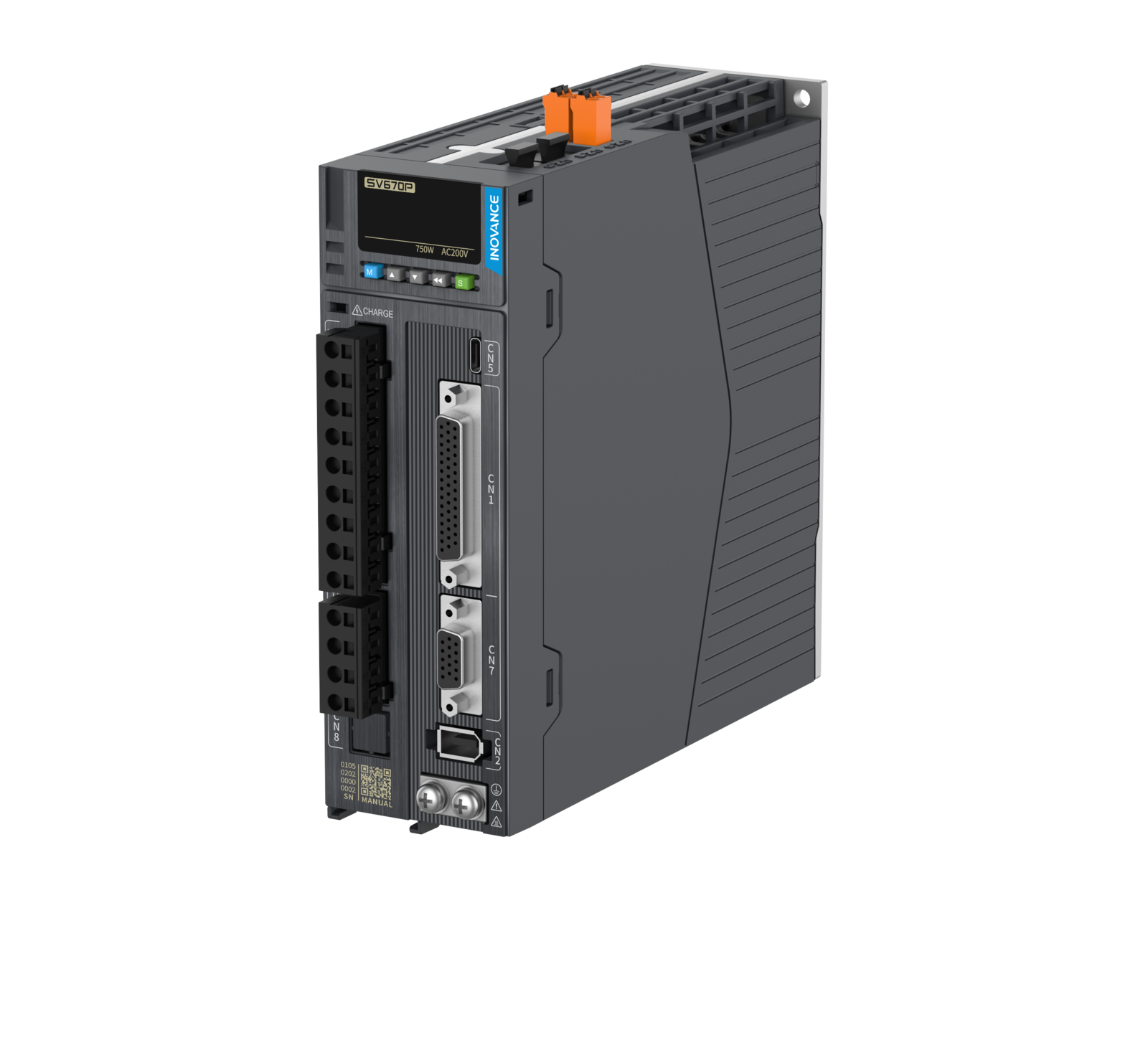

• SV670P – Single-Axis Pulse Servo Drive
• User friendly installation
• Easy set-up and tuning
• CANopen (C) and CANlink (A) variants also available
• Safe Torque Off - SIL 3
• 1/3 ph 200 V, 3 ph 400 V
• 0.1 kW to 7.5 kW
• Ultra-fast 4.5 kHz current loop
• Feedback encoder interface: serial (Weton), Nikon and Tamagawa
• Second encoder interface: incremental quadrature
• +24 VDC backup control supply variant available

Multi-axes servo drive platform – for maximum performance in the most demanding applications

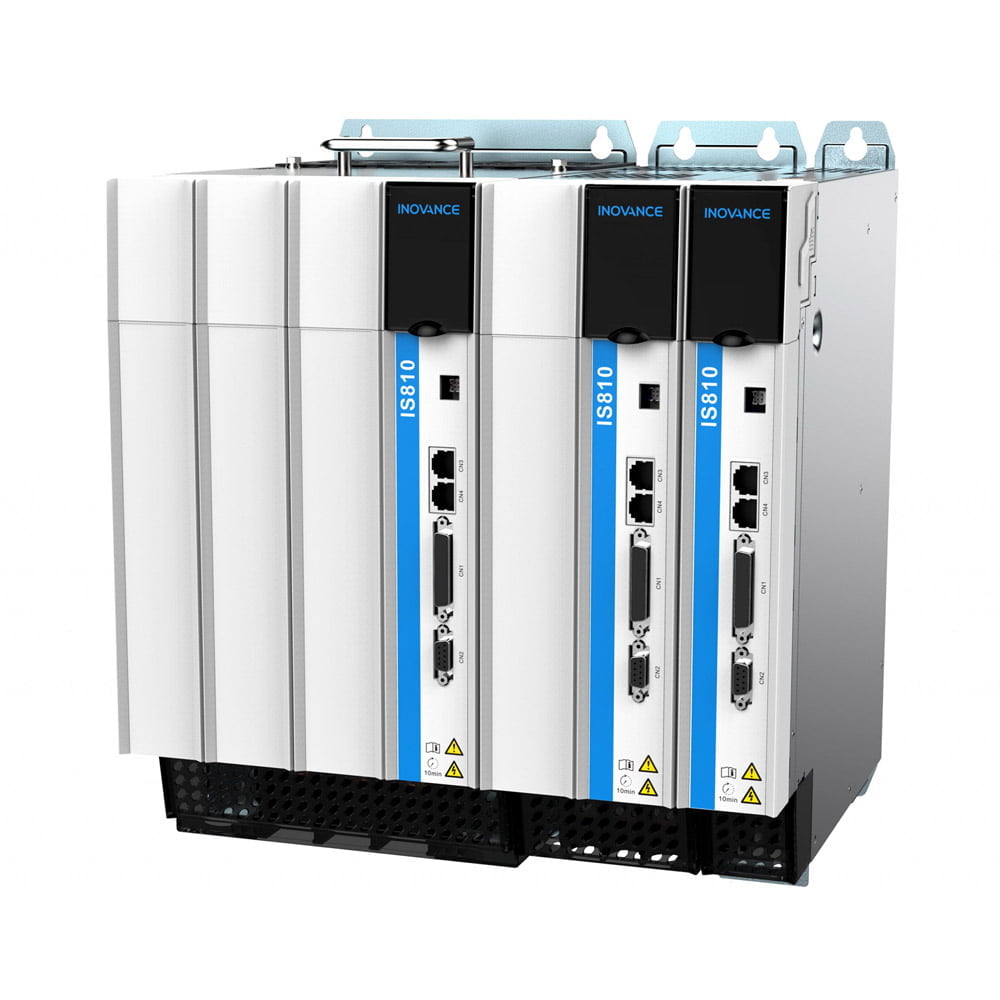

• IS810N servo drives
• Multi-axes servo drive platform – for maximum performance in the most demanding applications
• Common power supply module: 22-355 kW
• Single and dual axes modules: 850 W -75 kW*
• Three phase 400 V supply voltage
• Ultra-fast 4.5 kHz current loop
• Speed loop bandwidth up to 2 kHz
• Safe Torque Off – SIL 3
• Complies with CE
• *dual axes available up to 18.5 kW

Servo motor designed for energy saving servo pump applications

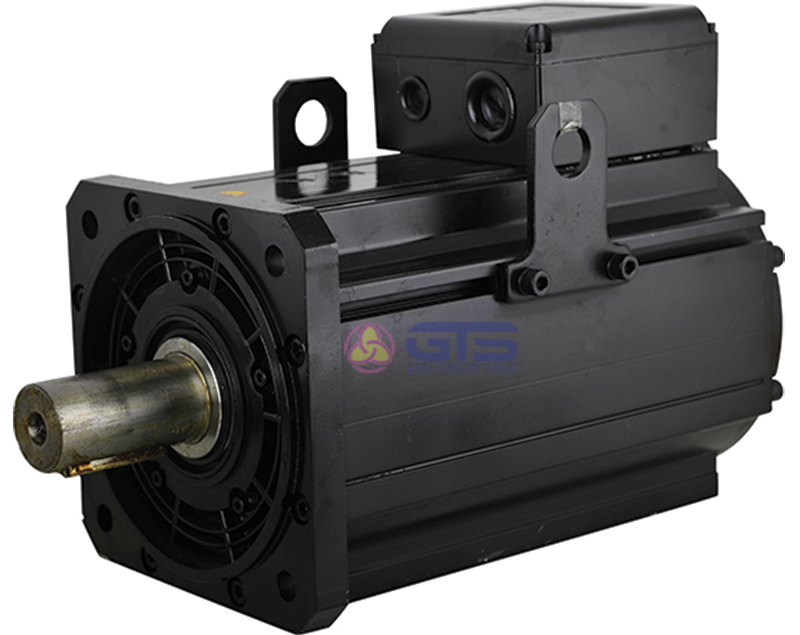

• ISMG series servo motors
• Servo motor designed for energy saving servo pump applications
• High overload capacity
• Excellent electromagnetic performance with interior permanent magnet rotor structure
• Higher efficiency and improved cooling with reduced iron and copper losses
• Robust resolver feedback
• Higher efficiency keeps motor cool during operation, and reduces the risk of demagnetization
• Forced ventilation
• Consistent temperature protection with three PTCs in series
• Precise temperature monitoring with KTY

High performance, compact, EtherCAT-enabled PLC

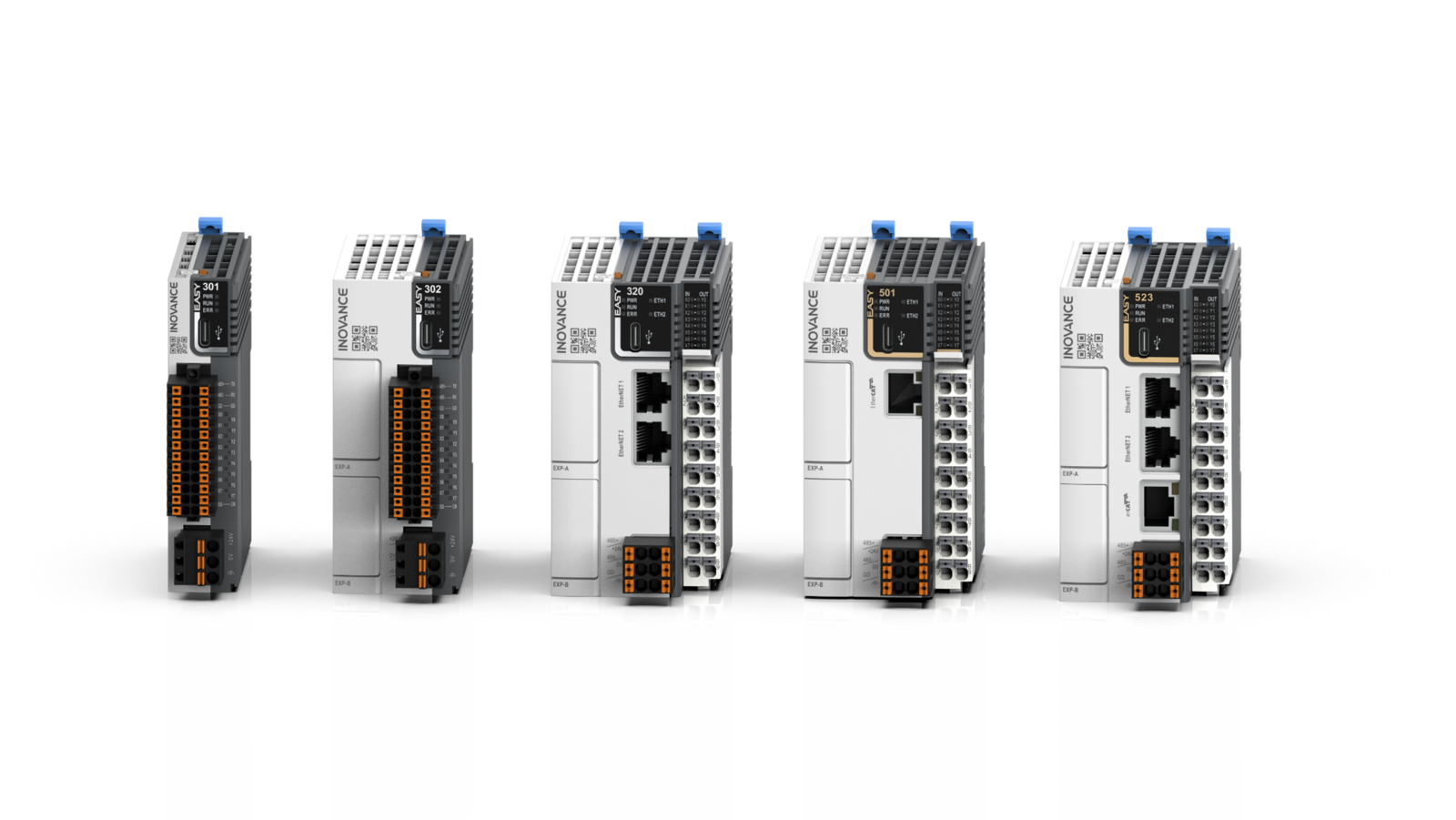

• Easy Series PLC
• High performance, compact, EtherCAT-enabled PLC
• Compact footprint
• A complete product range – from the simplest to the most complex motion control capable PLC
• PLCopen compliant axis control
• Simulation mode for offline debugging
• Real-time fieldbus
• Axis group for lineal and circular interpolation, CAM table functionality
• Supports function block and function for encapsulation, code reusability, and scalability
• ST, LD, SFC language support
• Multiple communication protocols:
• Modbus RTU/TCP
• CANopen (optional)
• Ethernet/IP (scanner)

Compact, stable and reliable expansion modules in many variants to suit different systems

• GL20 I/O Modules
• Compact, stable and reliable expansion modules
• Great performance with ultra fast response
• Compact size and wiring without tools
• Stable and reliable design
• Local & remote I/O expansion for Easy series, remote for AC700, AC800, H5U & AM600
• EtherCAT, PROFINET, Ethernet/IP and I/O-Link couplers for remote expansion (up to 16 modules)
• Min EtherCAT cycle 125µs
• DI/DO hardware response time within 100µs
• AI/AO capture cycle up to 62.5 µs
• Digital I/O modules
• Analog I/O modules
• Temperature sensing modules

High performance, compact, EtherCAT-enabled PLC High performance, compact, EtherCAT-enabled PLC for Industrial automation applications.

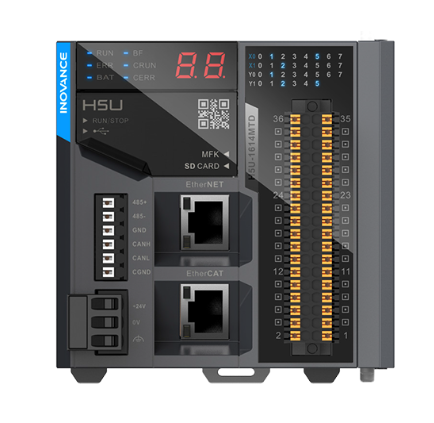

• H5U PLC
• High performance, compact, EtherCAT-enabled PLC for Industrial automation applications
• Compact footprint
• PLC open-compliant axis contro
• Simulation mode for offline debugging
• Real-time fieldbus
• Supports CANlink, CANopen and Modbus RTU communications
• Main unit with 16 inputs and 14 outputs, including high speed I/Os

compact, integrated display and controller A PLC with integrated display and control capabilities, supports Modbus-RTU & CANlink protocols, high-speed inputs: up to 60kHz and high-speed outputs: up to 100kHz.

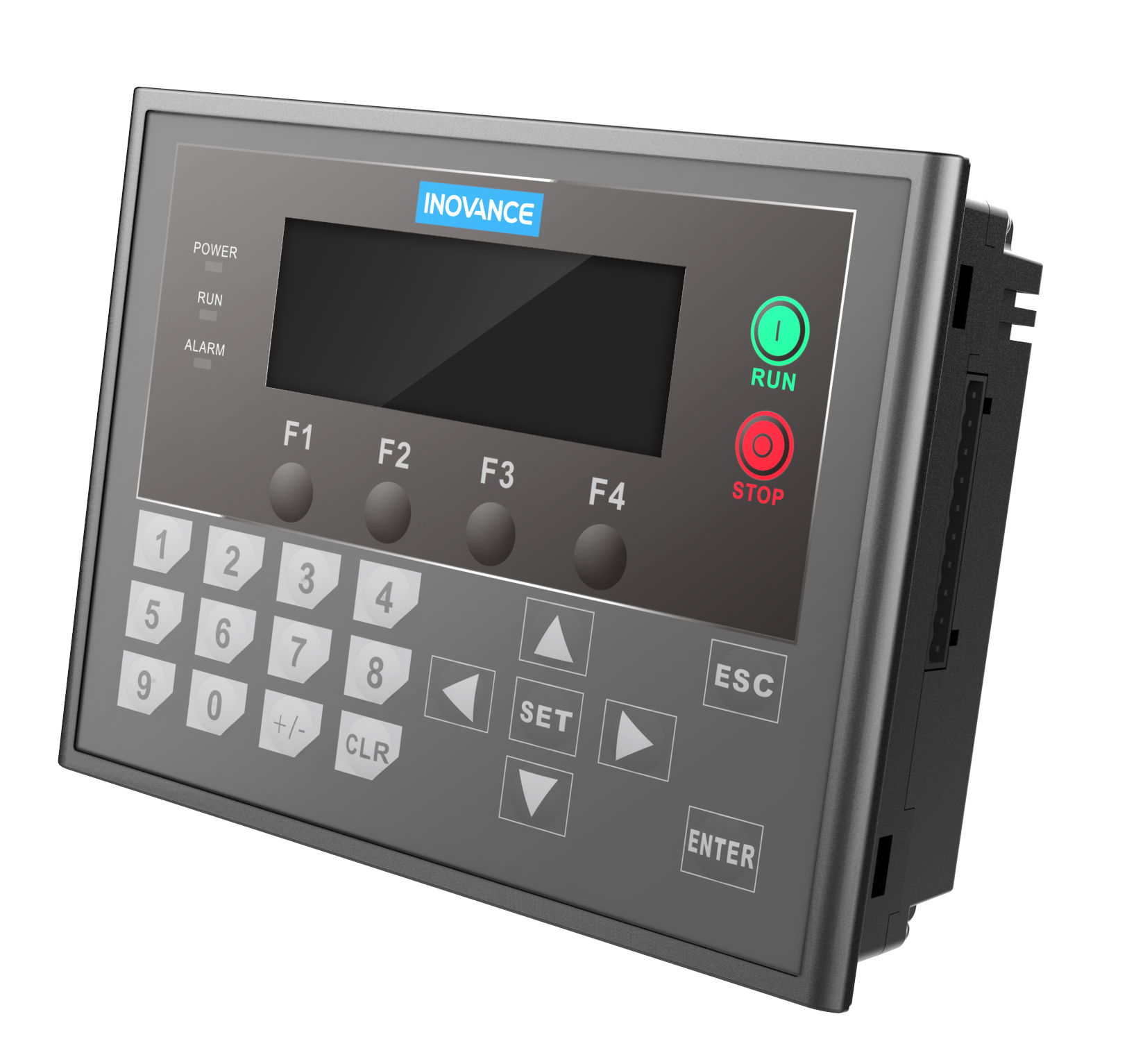

• H0U PLC
• A PLC with integrated display and control capabilities
• Six high speed inputs and 2 high speed transistor outputs
• Two RS485 ports
• Supports CANlink communications
• 25 user configurable function keys
• USB port
• AutoShop and HTodEditor PC software can be used to download software to the PLC and TOD

Economical and simple to use All in one CPU and power supply supporting local and remote I/O, economical and simple to use, high speed inputs: up to 60 kHz, high speed outputs: up to 100 kHz.

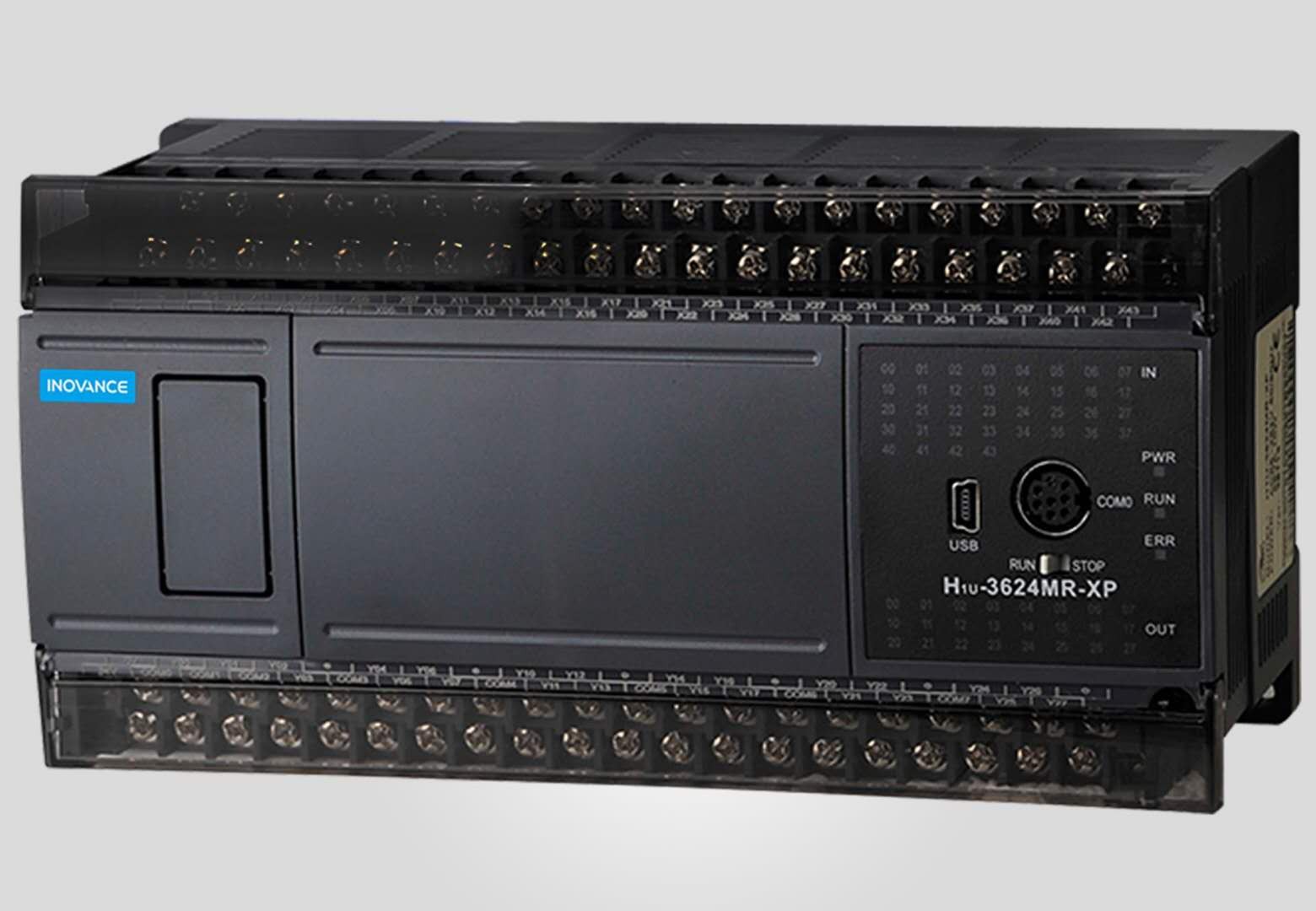

• H1U PLC
• Economical and simple to use
• Range of motion and positioning control functions
• USB port
• Supports CANlink and Modbus RTU communications
• Three separate communications ports
• Offers communications configuration function
• Large program memory for up to 8,000 steps
• Memory data automatically saves in case of power failure
• Real-time clock retained for one week after power failure with no need for battery
• High security encryption
• Multi-channel, high frequency I/O ports

High performance with motion control Multiple communication ports, three axes electronic CAM, high speed inputs: up to 200 kHz, high speed outputs: up to 500 kHz, standard motion.

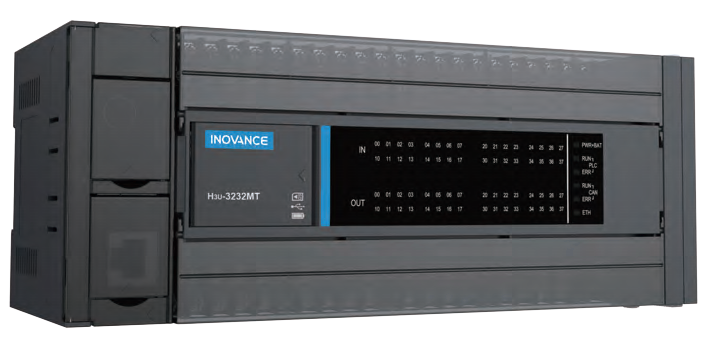

• H3U PLC
• High performance with motion control
• Combined CPU and power supply supports local and remote I/O
• Basic instruction: 100ns/instruction
• Program capacity of 64,000 steps
• Device memory:
• Auxiliary relays – 9,216 points
• Timers – 512 points
• Counters – 256 points
• Data registers – 9,552 points
• File registers – 32,768 points
• High-speed inputs of up to 200 kHz
• High-speed outputs of up to 500 kHz
• Three-axis electronic cam (high-end motion model only)
• Standard model offers two-axis circular and point-point interpolated motion
• High-end model offers three-axis point-to-point interpolation and spiral curve motion
• Communications options:
• Ethernet (MODBUS-TCP)
• RS485 (Modbus-RTU)
• CANopen
• CANlink
• I/O options:
• 192 local digital I/O
• 24 local analog I/O
• 7,936 remote digital I/O
• 1,488 remote analog I/O
• IEC 61131-3 programming languages:
• Ladder diagram
• Instruction list
• Sequential function chart
• Operates in high ambient temperatures: up to 45 ̊C
• Features Autoshop PC programming software

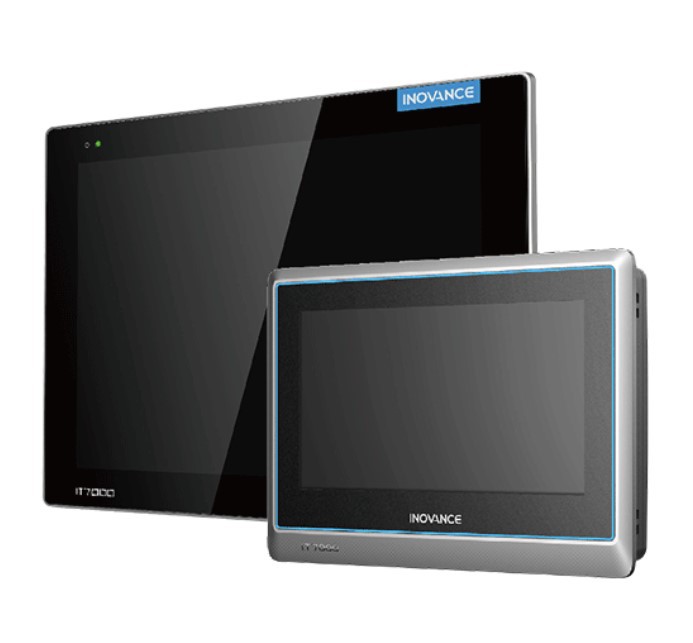

High performance HMI High-end functionality and connectivity; easy integration with any machine control system.

• IT7000 HMI
• Smart, high performance HMI
• 7", 10" & 15" display sizes available
• Built-in Ethernet and serial ports
• VNC function - Supports VNCremote access through mobile devices
• USB & micro-SD cards for easy data management
• Javascript for creation of plug-ins and dedicated communication protocols
• IIoT ready: MQTT implementation, seamlessly connects to any server
• Support for OPC UA and Modbus RTU/TCP protocols

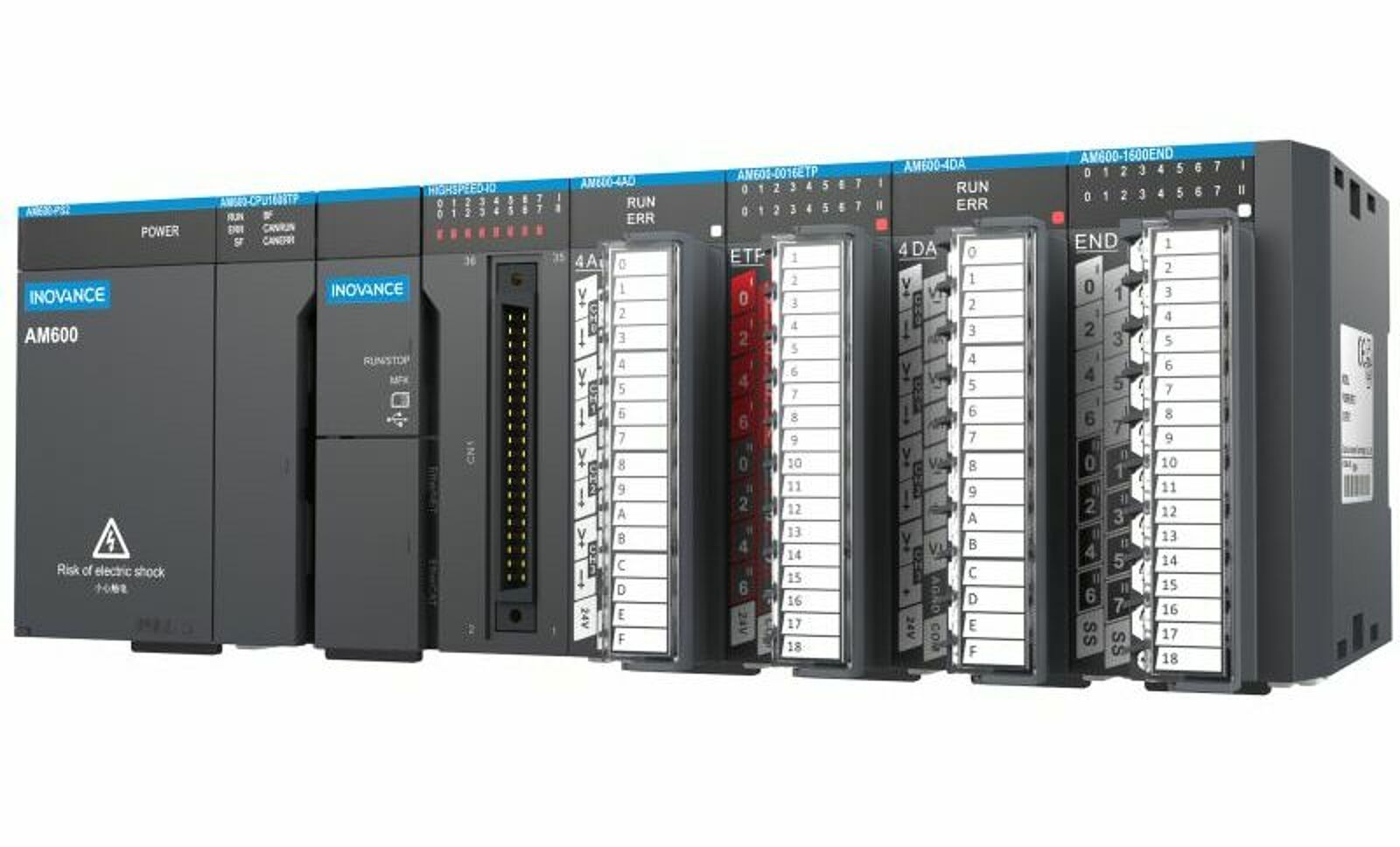

Centralized motion controller with built-in PLC functionality

• AM600 motion controller
• Centralized motion controller with built-in PLC functionality
• EtherCAT bus-based motion control supports multi-axis system (up to 32 axes)
• Supports additional I/O channels through the EtherCAT bus extended rack
• Provides 16 input and 8 output built-in high speed I/O ports and supports 8 AB-phase high-speed counters and 4 groups of pulse positioning
• Additional modules can be added to the main CPU module to manage different I/O types
• LAN port support Ethernet/IP, and Modbus TCP protocols
• Built-in Modbus RTU master/slave station protocol – two separate communications ports (RS485)
• CANopen/CANlink interface
• PLCopen libraries support linear/circular/helical interpolation, CAM profiles and robot kinematics
• IEC 61131-3 and CODESYS® programming are included with the InoProShop software tools Complies with CE

AC703 High Performance Intelligent Controller

• Ac703
• High Performance Intelligent Controller
• CPU: Intel Celeron J1900 2.0GHzz
• 32 axes at 1 ms EtherCAT period
• Maximum 32 axes, 128 slave stations
• EtherCAT I/O expansion support. Up to 128 EtherCAT remote I/O modules
• Multi-layer networking due to support for multiple communication protocols including: EtherCAT, Modbus TCP/RTU,Ethernet IP, OPC UA
• Compatible with legacy equipment through built-in Modbus RTU master/slave protocol and 2 separate communication
• interfaces: RS485 and RS232
• IEC 61131-3 programming languages: ST, LD, SFC, CFC
• System software contains: PLCopen, CAM, CNC, and ROBOT motion control components
• Remote commissioning and industrial IoT capabilities
• Embedded Webvisu server
• EoE support with Inovance SV660N drives

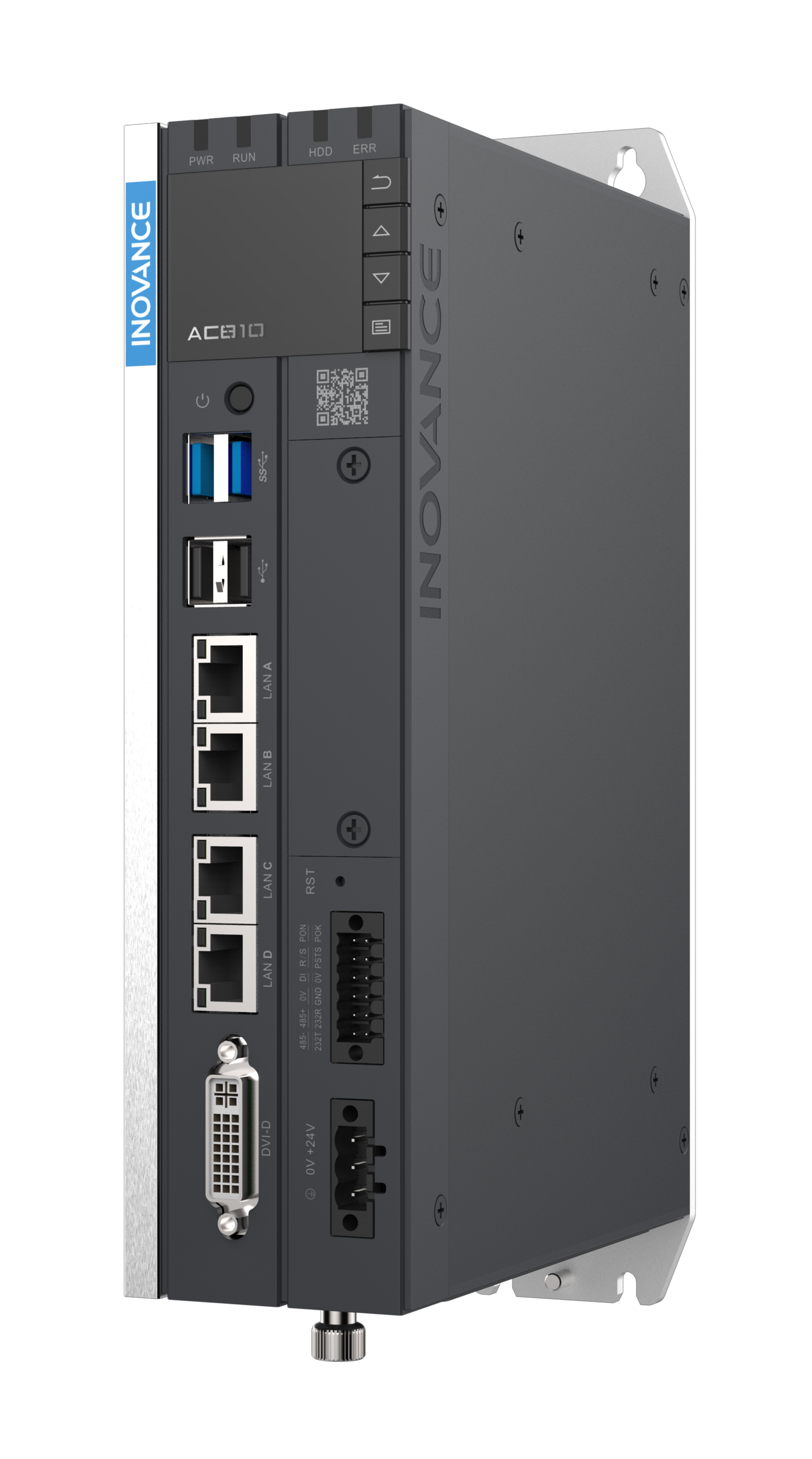

Intelligent machine controller

• AC8XX IPCs
• Intelligent machine controller
• High performance Intel Core i5 processor
• Based on LinuxRT and CODESYS® platform
• Six programming languages support the PLCopen specification
• Uses IEC 61131-3 programming tools
• System software contains: CODESYS - PLCopen, CAM, CNC and robot motion control components
• EtherCAT bus-based motion control supports multi-axis system (up to 256 axes)
• EtherCAT bus-based I/O supports extension of high-speed I/O and common DI/DO
• Dual EtherCAT master network or EtherCAT redundancy
• Multiple LAN ports support Ethernet/IP, OPC/UA, and Modbus TCP protocols
• Built-in Modbus RTU master/slave station protocol – two separate communications ports (RS485 and RS232)
• Complies with CE

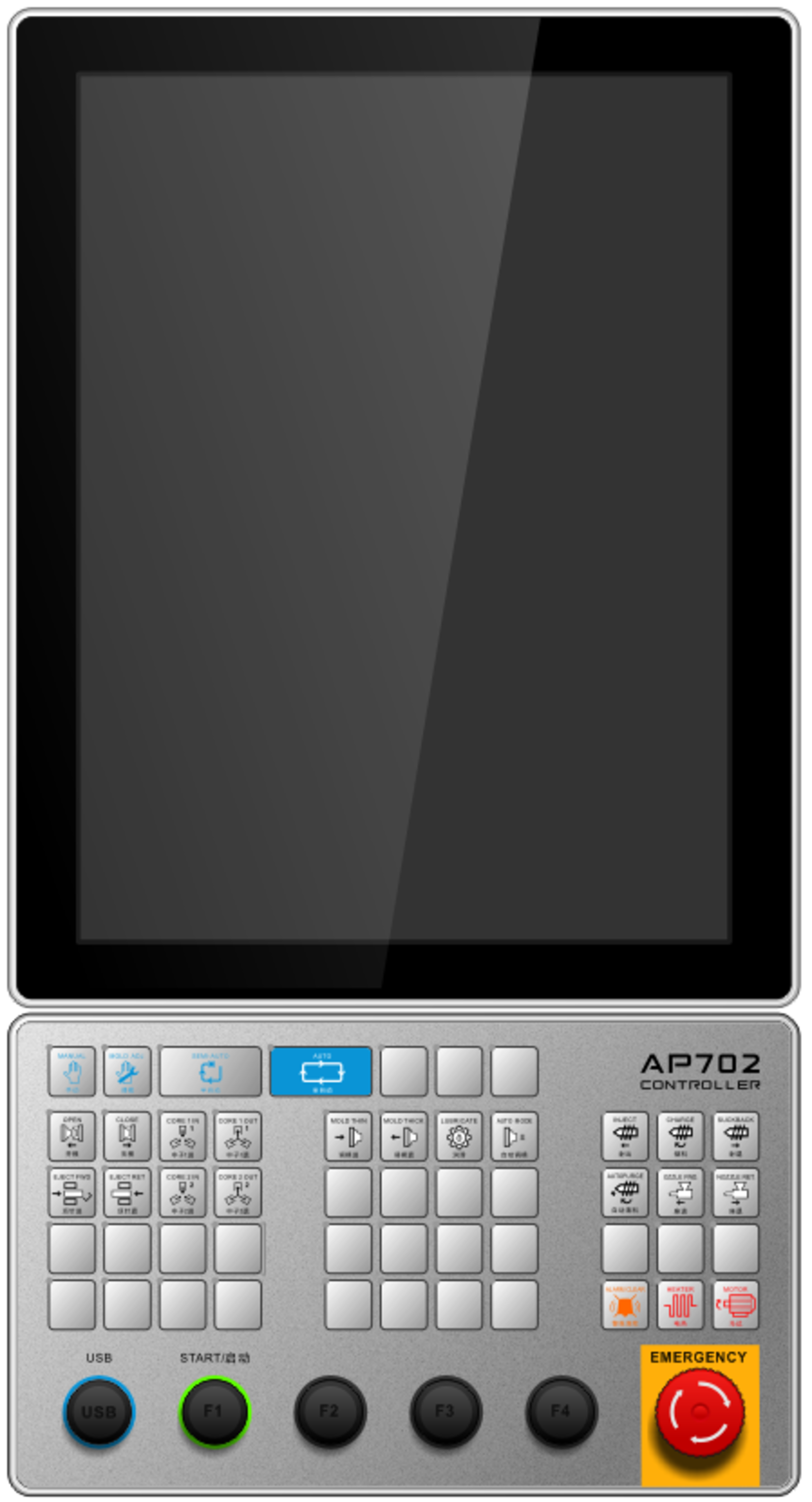

Integrated intelligent controller and display

• AP7XX HMIs
• Integrated intelligent controller and display
• Integrates PLC and HMI functions
• Optimizes intelligent equipment processing scheme:
• The PLC and HMI work together to optimize the control structure for fast response times
• Multi-axis motion control with visual editing
• Integrated visual programming control system
• Min. bus cycles 500 μs
• Multi-axis motion control: 1 ms synchronization (32 axes)
• 15-inch resistive touchscreen
• Interactive option with user-friendly interface
• Fan-free design
• Three installation options: backplate, pillar and cantilever
• Extendable standard keyboard and mouse
• Direct access and operation of USB DISK data
• Optional programmable numerical control keyboard
• Complies with CE

Our flexible family of EtherCAT I/Os – GL10 & GR10 – combine advanced functionality with a compact footprint

• GL10 and GR10 I/O modules
• Our flexible family of EtherCAT I/Os – GL10 & GR10 – combine advanced functionality with a compact footprint
• GL Series – supports local expansion of H3U, H5U, AM400, and Am600
• GR Series – distributed high-speed module
• EtherCAT bus coupler for up to 16 x DI/DO modules or up to 8 x AI/AO modules
• Adapted to EtherCAT masters such as Omron NX and NJ series, Beckhoff CX series, and Keyence KV series
• Digital input module: 16 x 24 VDC
• Digital output module: 16 x 24 VDC/ 0.5 A PNP
• Digital output module: 16 x 24 DC/ 0.2 A NPN
• 16 relay outputs: 110/220 VAC or 24 VDC, max. 2 A
• Analog output module: 4 x +/-10 V, 16 bit, 1 ms
• Analog input module: 4x +/-10 V, 16 bit, 1 ms
• Temperature modules
• Counter modules
• Complies with CE
